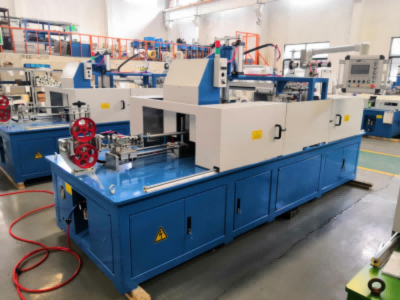

Fully automatic cable coil packaging machine

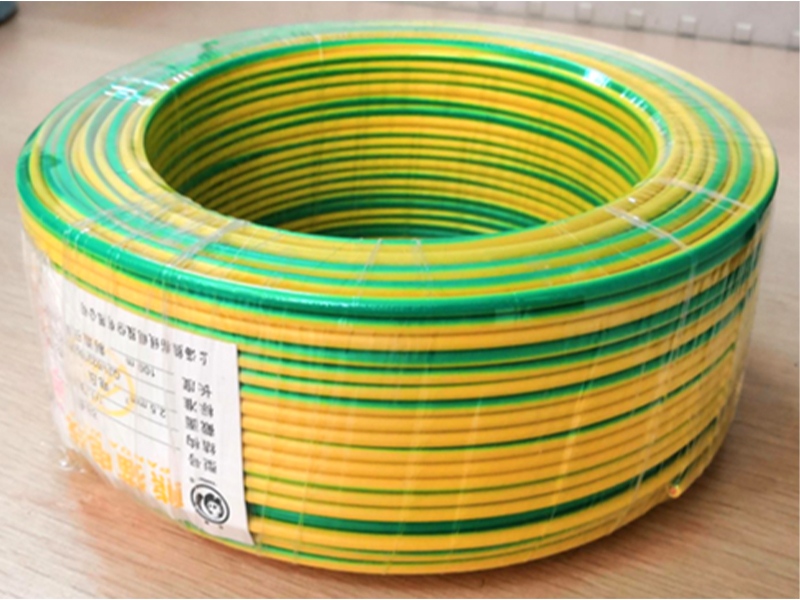

Our fully automatic packaging machine efficiently coils the cable and wraps it with packaging film in a seamless process. It boasts a high production speed, reaching up to 260 m/min, ensuring efficient and timely packaging.
| Model | TP460 | TP600 | TP800 |
| Applicable wire section | 1.5 - 12 mm² | 5 - 20 mm² | 50-240 mm² |
| Production speed | 260 m/min | 200 m/min | 150 m/min |
| Outer diameter of coils | Φ240 - 460 mm | Φ320 - 600 mm | Φ400 - 800 mm |
| Inner diameter of coils | Φ170 - 220 mm | Φ200 - 300 mm | Φ250 mm |
| Height of coils | 60 - 100 mm | 80 - 160 mm | 150-300mm |
| Packing material | PVC,PP,PE | PVC,PP,PE | PVC,PP,PE |
| Automatic stacking and palletizing system | Optional | Optional | Optional |
Discover the advanced JLK 630 frame rigid stranding machine designed for large cross-section copper and aluminum conductors. High-speed, PLC-controlled, and highly efficient. Contact us for complete cable production solutions today.
Efficient Stranding for Long and Large Cross-Section Copper and Aluminum Strands
The VVF tandem extrusion line is designed for the manufacturing building wires.
The GJS series is designed for power cable insulation and sheath extrusion, covering LV to EHV power cable.
Engineered for maximum versatility, allowing for single,double,or triple-layer co-extrusion.
The One-step silicohydride crosslink insulation extrusion line is designed for the insulation extrusion of cooper and aluminum conductors.
