High-Speed JLK 630 Frame Rigid Stranding Machine

Discover the advanced JLK 630 frame rigid stranding machine designed for large cross-section copper and aluminum conductors. High-speed, PLC-controlled, and highly efficient. Contact us for complete cable production solutions today.

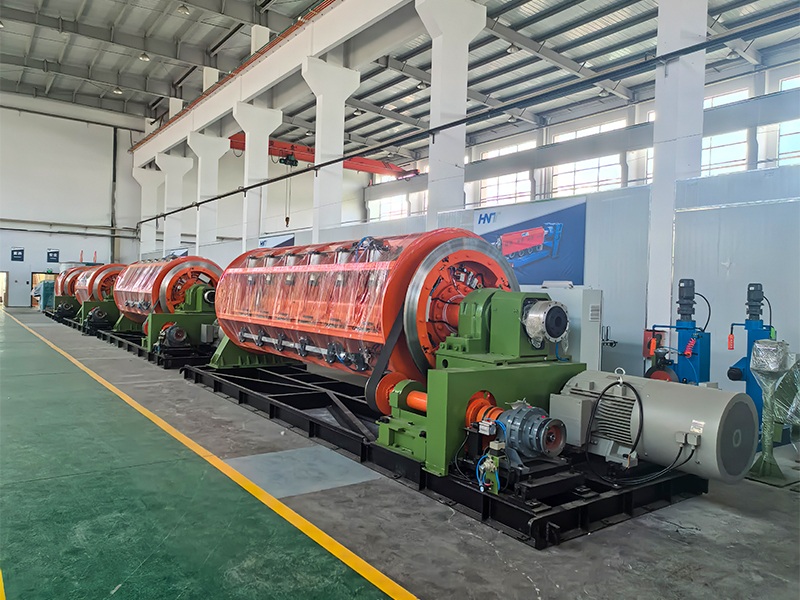

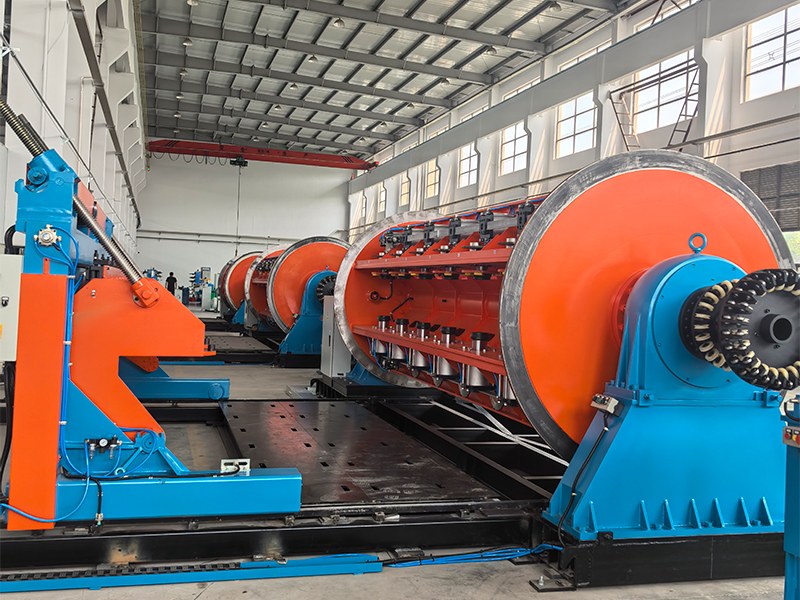

Copper and Aluminum Rigid Stranding Machine

Whether your production line requires standard or specialized configurations, this versatile machine is capable of handling both round and sector-shaped conductors. Furthermore, it expertly performs pre-twisted compaction operations specifically designed for segmented conductors, making it a powerful addition to any heavy-duty wire and cable manufacturing facility.

Inquiry Now

Features

Sturdy frame structure for excellent rigidity and durability.
Fast and convenient loading with no turnover spool required.
Simple and stable tension control for precise stranding.
Automatic wire-break detection for enhanced safety.
PLC control for stable operation,reliable performance,and high automation.

Specifications

We offer multiple configurations to suit your specific manufacturing scale. Below are the core technical parameters for the 630, 710, and 800 models:

Model	630	710	800
Bobbin No.	6,12,18,24,30,36,42
Max rotation speed	260 RPM	230 RPM	180 RPM
Inlet wire size	1.5-5.0 mm(copper,aluminum)

Why Choose Us for Your Wire & Cable Equipment?

Industry Expertise
With years of experience in the wire and cable manufacturing sector, we provide not just machines, but complete operational solutions.
Strict Quality Assurance
Every machine undergoes rigorous load-testing before shipment to ensure it meets international manufacturing standards.
Global Technical Support
From initial installation to ongoing maintenance, our engineering team ensures your production line runs continuously and efficiently.

FAQ

Q1: What materials can the JLK 630 stranding line process?

A1: The machine is fully capable of processing inlet wire sizes from 1.5mm to 5.0mm for both copper and aluminum materials.

Q2: Does the machine support customized bobbin configurations?

A2: Yes, the machine is highly flexible and supports a wide range of bobbin numbers including 6, 12, 18, 24, 30, 36, and 42 to meet your structural requirements.

Q3: How does the machine handle tension during high-speed rotation?

A3: It utilizes an advanced, simple, and stable tension control system combined with an automatic wire-break detection sensor to ensure precision and safety at speeds up to 260 RPM.
