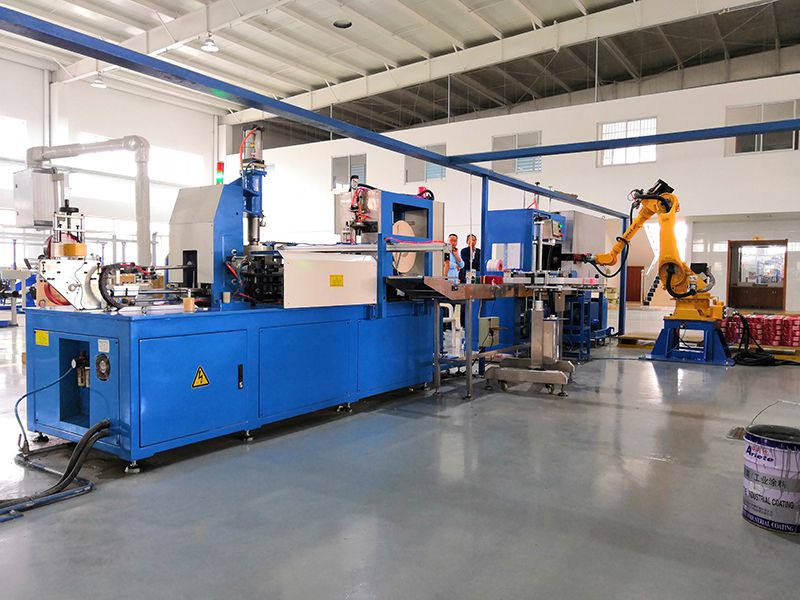

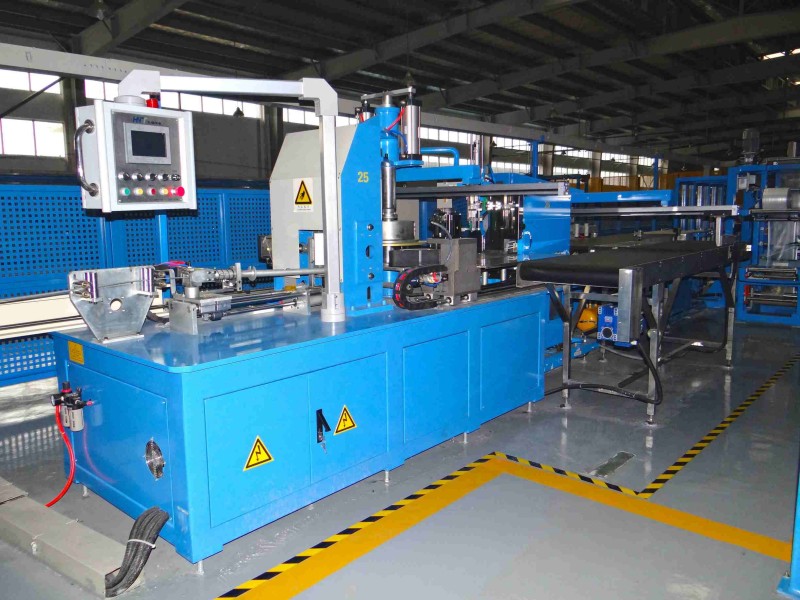

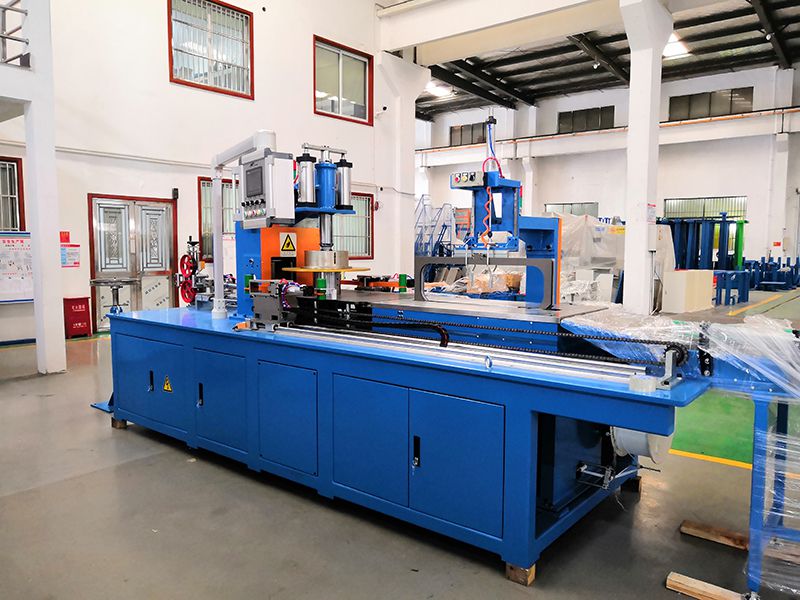

Automatic Coiling Bundling and Heat-Shrinking Machine

Cable packaging line for cable coiling, bundling and heat shrink wrapping

The Automatic Coiling Bundling and Heat-Shrinking series is designed for the coiling and packaging process of electric wires,it tightens the finished coils,making the following stacking and transporting progress easier.

Inquiry Now

Features

This line is controlled by PLC and touch screen,easy to operate.It also adopts servo motor flat cable system, ensuring precise control on the appearance of finished product.
The PLC mode has already stored 99wire packaging settings,if the user would like to choose a different packaging method,simply load a new setting,and the machine will be ready to operate.
The binding tension is adjustable according to product characteristics.
Automatic fault detecting system is built-in to warn operators and show fault information on touch screen once a problem occurs.
This line could also be followed with an optional automatic/intelligent stacking and palletizing system, which uses robotic arms to replace human labor,increasing efficiency and reducing labor cost.One system could be used in 3 stacking production lines.

Specifications

Model	GA240	GC240	GC600
Applicable wire section	1.5-6.0mm²	1.5-6.0mm²	6.0-35.0mm²
Production speed	400m/min	200m/min	200m/min
Outer diameter of coils	Φ100-300mm	Φ100-300mm	Φ400-600mm
Inner diameter of coils	Φ180-250mm	Φ180-250mm	Φ180-250mm
Height of coils	50-100mm	50-100mm	100-180mm
Material of strips	PP
Packing method	Hollow heat shrinking
Automatic stacking and palletizing system	Optional
