Efficient Stranding for Long and Large Cross-Section Copper and Aluminum Strands

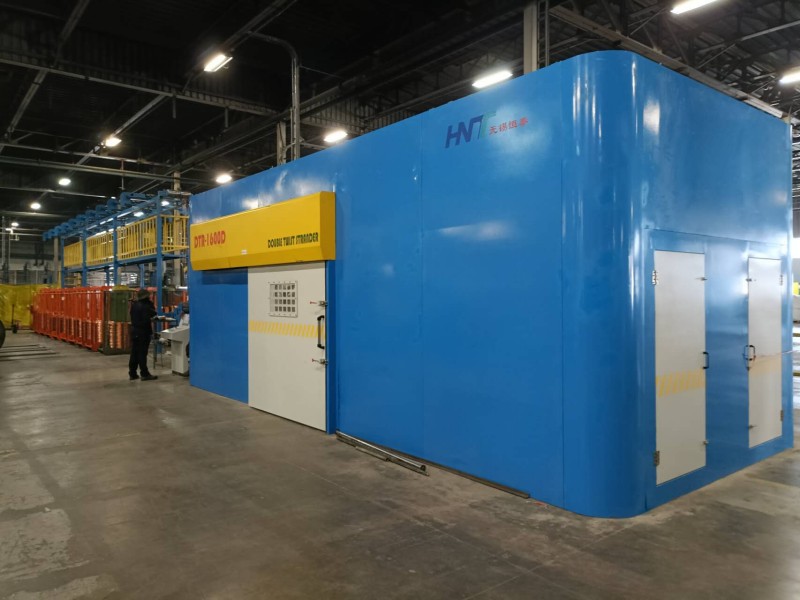

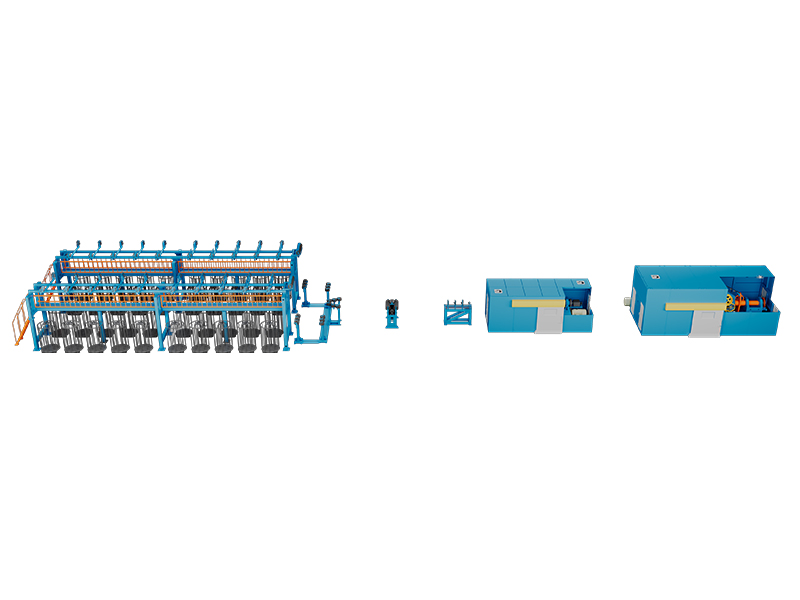

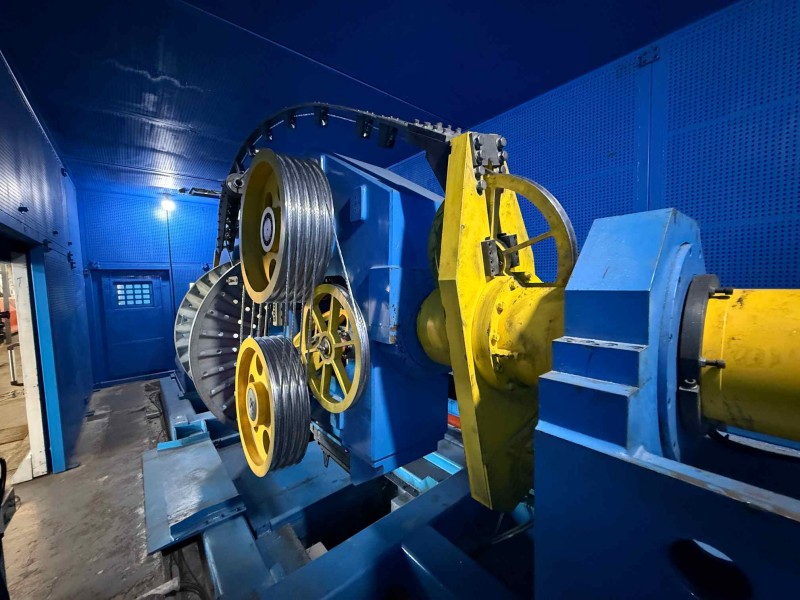

We offer the double twist bunching machine, designed for the efficient stranding of copper and aluminum strands and ropes. This bunching machine is suitable for manufacturing long-length, large cross-section aluminum/aluminum alloy wires, bare copper wires, steel core aluminum conductors, sector-shaped conductors, and cross-linked compressed cable cores.
|
Model |
DT1250 |
DT1600 |
DT2000 |
DT2500 |
|
Speed (RPM) |
800 RPM |
600RPM |
500 RPM |
450 RPM |
|
Max Finished Product Cross-sectional Area |
70mm² |
240mm² |
300mm² |
400mm² |
|
Max Input Wire Count,Cu/Al. |
19 |
37 |
61 |
61 |
|
Max Input Wire Count, Insulated Wire |
7 |
19 |
37 |
37 |
|
Input Single Wire Diameter Range, Copper/Aluminum Wire |
1~3.2 mm |
1.5~4.8 mm |
1.5~4.8 mm |
1.5~4.8 mm |
|
Input Single Wire Diameter Range, Insulated Wire |
2.5~8 mm |
2.5~10 mm |
2.5~10 mm |
2.5~12mm |
Discover the advanced JLK 630 frame rigid stranding machine designed for large cross-section copper and aluminum conductors. High-speed, PLC-controlled, and highly efficient. Contact us for complete cable production solutions today.
Efficient Stranding for Long and Large Cross-Section Copper and Aluminum Strands
The VVF tandem extrusion line is designed for the manufacturing building wires.
The GJS series is designed for power cable insulation and sheath extrusion, covering LV to EHV power cable.
Engineered for maximum versatility, allowing for single,double,or triple-layer co-extrusion.
The One-step silicohydride crosslink insulation extrusion line is designed for the insulation extrusion of cooper and aluminum conductors.
