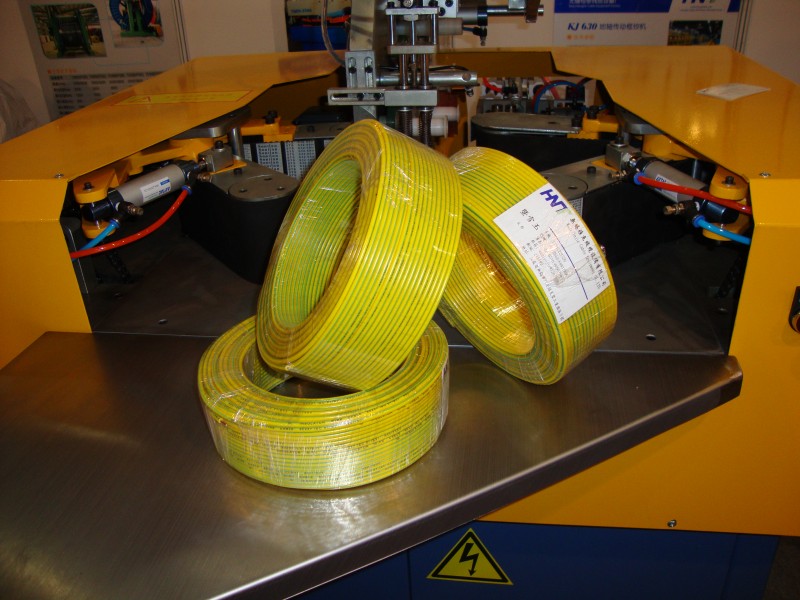

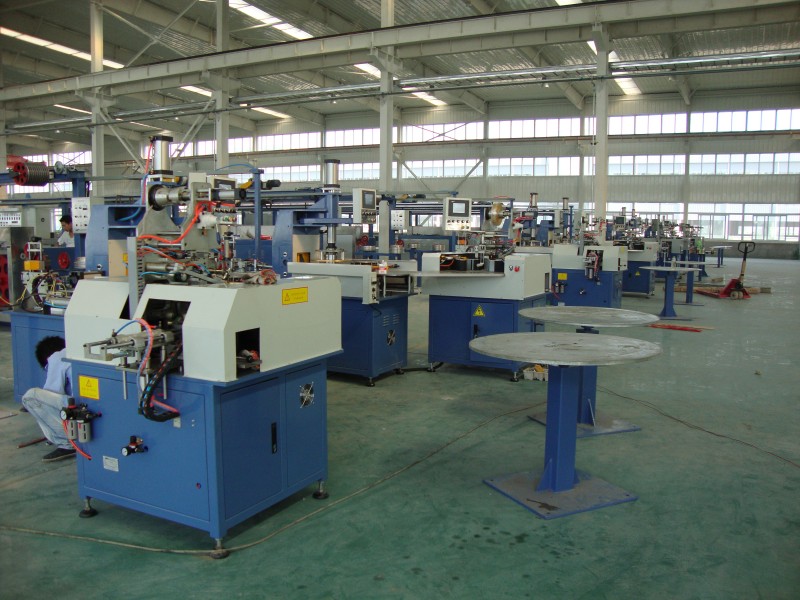

Circinate Film Microcomputer Automatic Packaging Machine

Microcomputer controlled packaging machine for reel-less cable coils

This machine use PVC, PE film, PP woven belt or woven paper to pack coils with high speed.

Inquiry Now

Features

This series utilize touch panel, making the operation of the machines easier; This series use motor-driven coil-holding arms, which operate smoothly in rotating and handling coils;
This series is controlled by PLC, ensuring stable operation; the PLC stores 99 different packing specifications, if a different type of coils are to be packaged, simply choose from the stored specifications, and the machine will be ready to go;
Automatic labeling is supported by this series, simply set the size of the coil-holding arms when a different size of coils are to be packaged easy to operate.

Specifications

Model	P70	P100	P120	P140	P180	P210
Wrapping thickness	0.04-0.07mm	0.04-0.07mm	0.04-0.07mm	0.04-0.07mm	0.04-0.07mm	0.04-0.07mm
Outer diameter of coils	Φ200-360 mm	Φ220-460 mm	Φ220-460mm	Φ300-600 mm	Φ320-600 mm	Φ400-800 mm
Inner diameter of coils	Φ140mm	Φ150mm	Φ160mm	Φ180mm	Φ200 mm	Φ250mm
Height of coils	30-70mm	50-100mm	70-120mm	70-120 mm	90-180mm	100-210mm
Wrapping material	PVC,PE				PVC, PE, PP	PVC,PE,PP,Wovenbelt
Weight of machine	25kg	35kg	40kg	100 kg	150 kg	200kg
