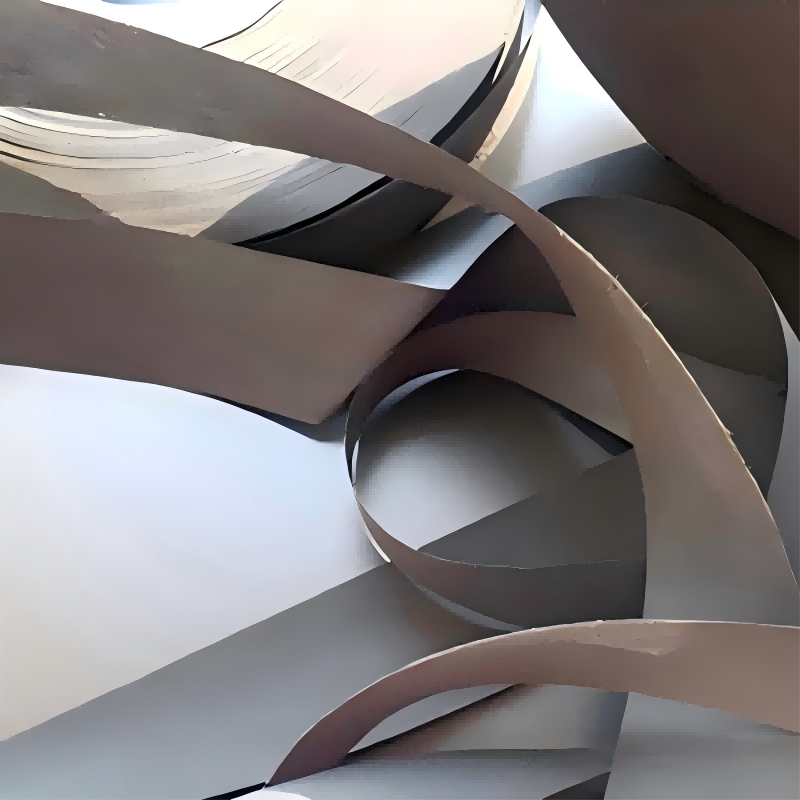

S&A offers semi-conductive non-woven tape, specially designed for cable conductor binding, cable shielding, and other applications. Our tape is made from 100% polyester fibers and impregnated with conductive adhesive. It exhibits high longitudinal strength, low resistance, and stable performance.
| Grade (µm) | Basis Weight (g/m²) | Tensile Strength (N/cm) | Elongation (%) | Surface Resistance (Ω) | Volume Resistance (Ω·cm) | Short-Term Stability (°C) | Long-Term Stability (°C) |
|---|---|---|---|---|---|---|---|
| 100±20 | 35±10 | ≥20 | ≥10 | ≤1500 | ≤1×10⁶ | 230 | 90 |
| 150±20 | 50±10 | ≥30 | ≥12 | ≤1500 | ≤1×10⁶ | 230 | 90 |
| 200±30 | 75±10 | ≥43 | ≥12 | ≤1500 | ≤1×10⁶ | 230 | 90 |
| 250±40 | 90±10 | ≥46 | ≥12 | ≤1500 | ≤1×10⁶ | 230 | 90 |
Customized specifications are available upon request.
Note: The tape is available in black color. The minimum width for slitting is 5mm, with inner core sizes of 52mm or 76mm. The maximum outer diameter for winding is 800mm, and packaging is done in cartons.
Discover the advanced JLK 630 frame rigid stranding machine designed for large cross-section copper and aluminum conductors. High-speed, PLC-controlled, and highly efficient. Contact us for complete cable production solutions today.
Efficient Stranding for Long and Large Cross-Section Copper and Aluminum Strands
The VVF tandem extrusion line is designed for the manufacturing building wires.
The GJS series is designed for power cable insulation and sheath extrusion, covering LV to EHV power cable.
Engineered for maximum versatility, allowing for single,double,or triple-layer co-extrusion.
The One-step silicohydride crosslink insulation extrusion line is designed for the insulation extrusion of cooper and aluminum conductors.
