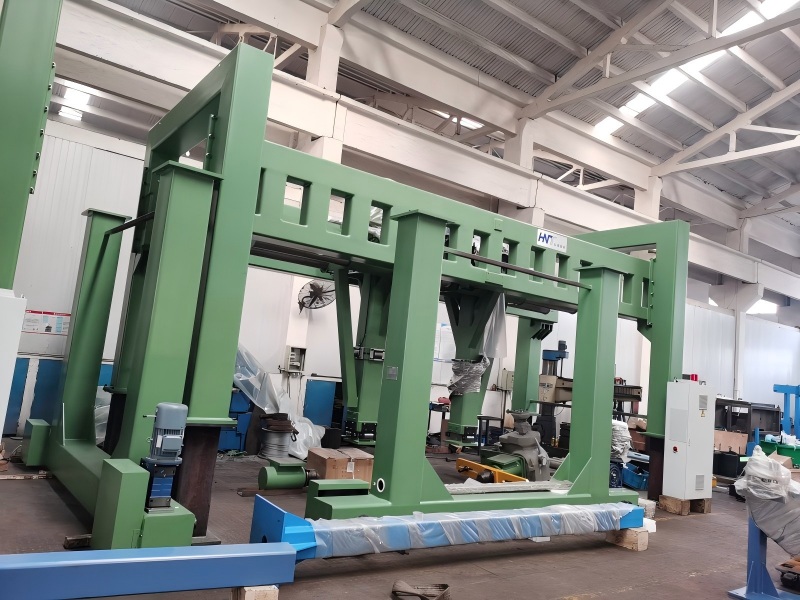

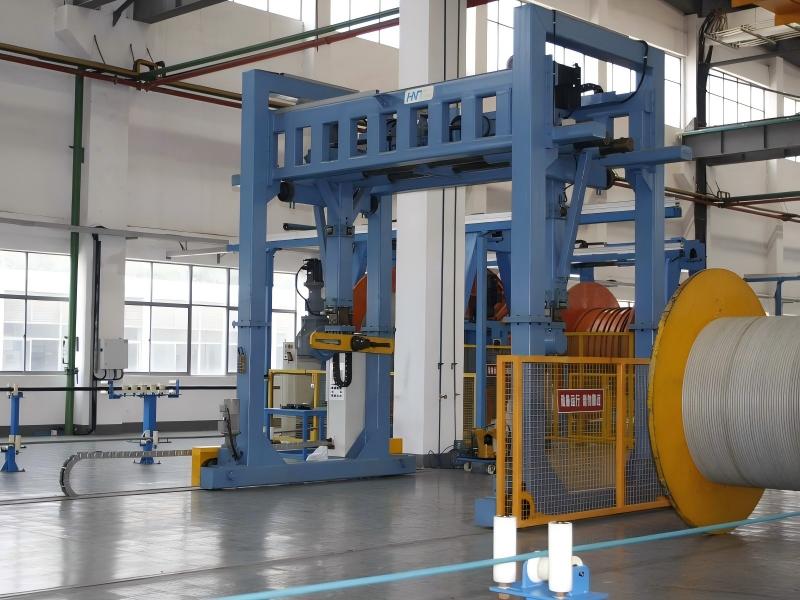

The HT(HP) Suspension Type Take-Up/Pay-Off Machine is a heavy-duty cable winding/unwinding solution designed for medium and high-voltage cable production lines.
Featuring adjustable traverse range (8–160 mm) and multi-speed rotation, it ensures precise, uniform winding with stable tension control. The suspension design eliminates the need for floor rails, saving workshop space while providing smooth, low-noise operation. Widely used as auxiliary equipment in extrusion, stranding, and cabling processes.
|
Model |
HT25 |
HT32 |
HT36 |
HT42 |
|
Reel diameter |
1250/2500 |
1600/3200 |
2000/3600 |
2500/4200 |
|
Max flange diameter (mm) |
2500 |
3200 |
3600 |
4200 |
|
Min flange diameter (mm) |
1250 |
1600 |
2000 |
2500 |
|
Min overall width (mm) |
900 |
1180 |
1500 |
1900 |
|
Max overall width (mm) |
1900 |
2120 |
2300 |
2400 |
|
Min barrel diameter (mm) |
500 |
800 |
2500 |
2800 |
|
Bore (mm) |
80 (100-125) |
80(100-125) |
200 |
200 |
|
Min wire diameter (mm) |
7 |
8 |
20 |
30 |
|
Max wire diameter (mm) |
70 |
120 |
140 |
160 |
|
Max rotation speed (RPM) |
7/17/37 |
7/17/37 |
6/12/22 |
6/12/22 |
|
Traverse range (mm) |
8-90 |
9-120 |
20-140 |
30-160 |
|
Max reel weight (kg) |
12000 |
18000 |
25000 |
30000 |
