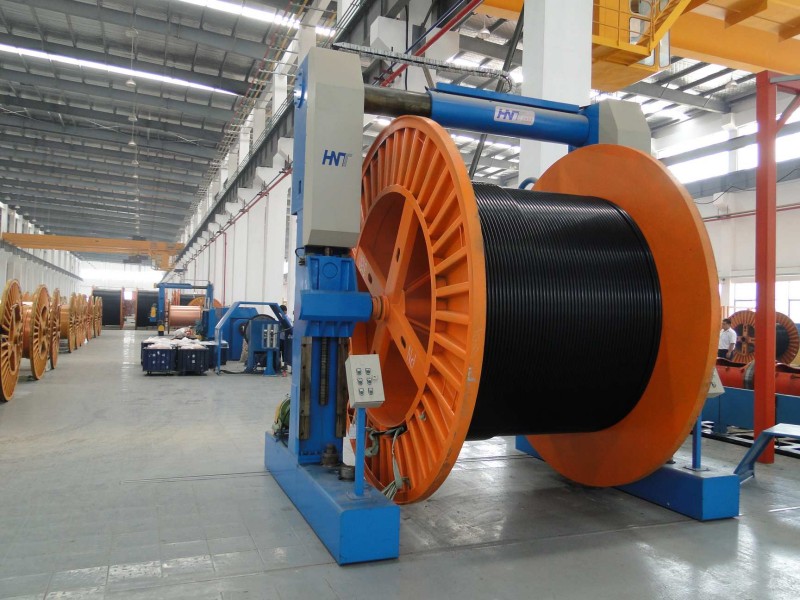

The TU/PO type take-up (pay-off) & floor traversing standing machine is a heavy-duty cable winding solution designed for extrusion, stranding, and rewinding lines. With reel sizes ranging from Φ850 to Φ3600 and max reel weight up to 20000kg, it supports wire diameters 4–140mm, suitable for power cables, overhead lines, and large-section conductors.
|
Model |
TU16 |
TU20 |
TU25 |
TU32 |
TU36 |
|
Reel diameter |
850/1600 |
1000/2000 |
1250/2500 |
1600/3200 |
2000/3600 |
|
Max flange diameter (mm) |
1600 |
2000 |
2500 |
3200 |
3600 |
|
Min flange diameter (mm) |
850 |
1000 |
1250 |
1600 |
2000 |
|
Min overall width (mm) |
600 |
600 |
900 |
1180 |
1500 |
|
Max overall width (mm) |
1180 |
1500 |
1900 |
2120 |
2300 |
|
Min barrel diameter (mm) |
400 |
500 |
500 |
800 |
2500 |
|
Bore (mm) |
80 |
80(100) |
80(100-125) |
80(100-125) |
200 |
|
Min wire diameter (mm) |
4 |
5 |
7 |
8 |
20 |
|
Max wire diameter (mm) |
40 |
50 |
70 |
120 |
140 |
|
Max rotation speed (RPM) |
7/17/37 |
7/17/37 |
7/17/37 |
7/17/37 |
6/12/22 |
|
Traverse range (mm) |
5-50 |
6-60 |
8-90 |
9-120 |
20-140 |
|
Max reel weight (kg) |
6000 |
8000 |
12000 |
15000 |
20000 |
