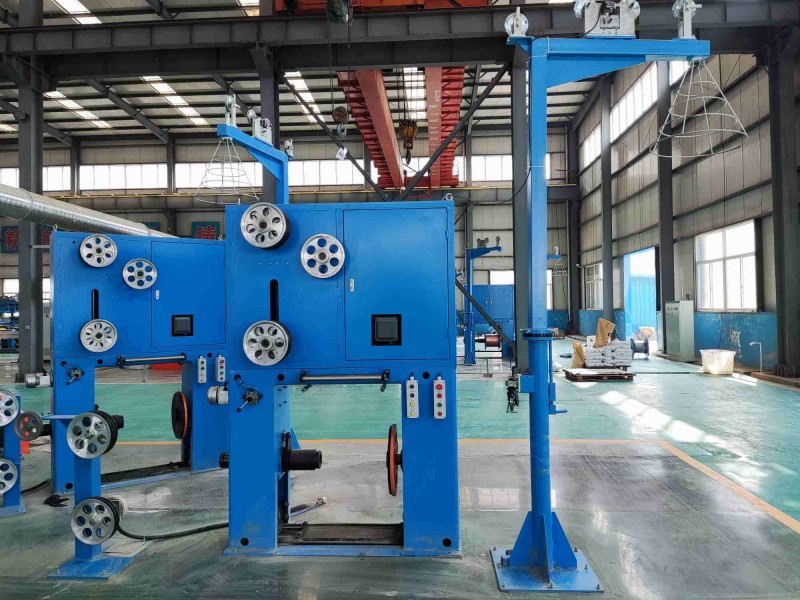

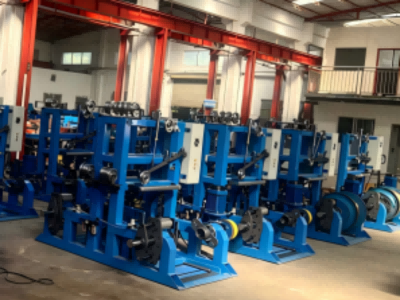

The Fixed Type Pay-Off and Take-Up Machine provides a robust and reliable stationary solution for wire and cable feeding and collection across a broad range of production line configurations. As a fixed installation, the machine is bolted to the production floor at the entry or exit point of the process line, offering the structural stability, consistent alignment, and straightforward integration that make it the standard choice for dedicated, high-utilization production positions where mobility is not required.
|
Specification |
PND500/630 |
PND630/800 |
|
Bobbin Size (mm) |
500/630 |
630/800 |
|
Min. Dia. of Flange (mm) |
500 |
630 |
|
Max. Dia. of Flange (mm) |
630 |
800 |
|
Center Hole (mm) |
Φ75 |
Φ75 |
|
Range of Wire Diameter (mm) |
Φ1.0-5.0 |
Φ1.0-5.0 |
|
Rotate Speed (rpm) |
7/17/37 |
7/17/37 |
|
Motor Power (kW) |
5.5 |
7.5 |
|
Max. Reel Weight (kg) |
600 |
900 |
