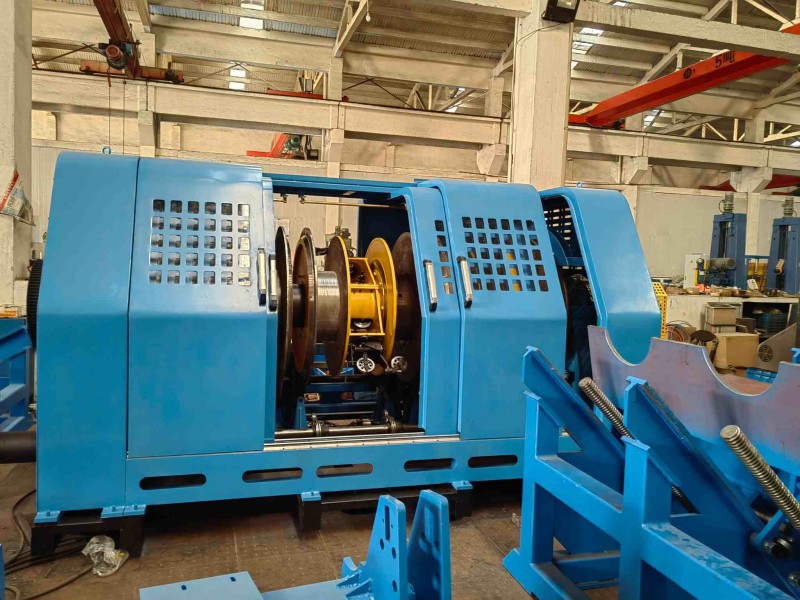

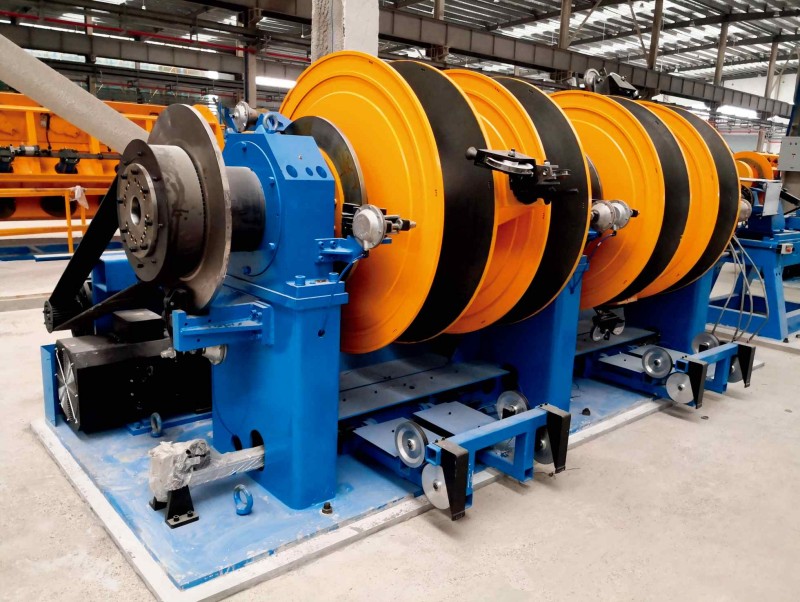

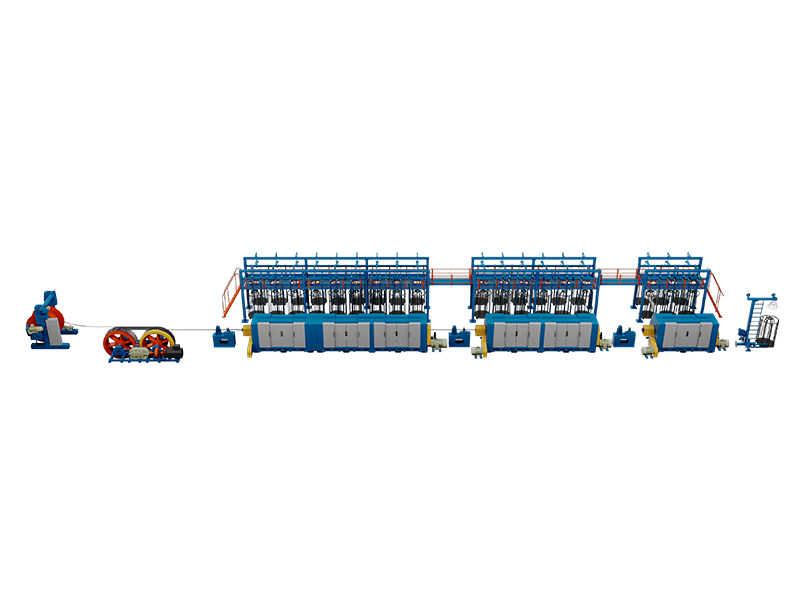

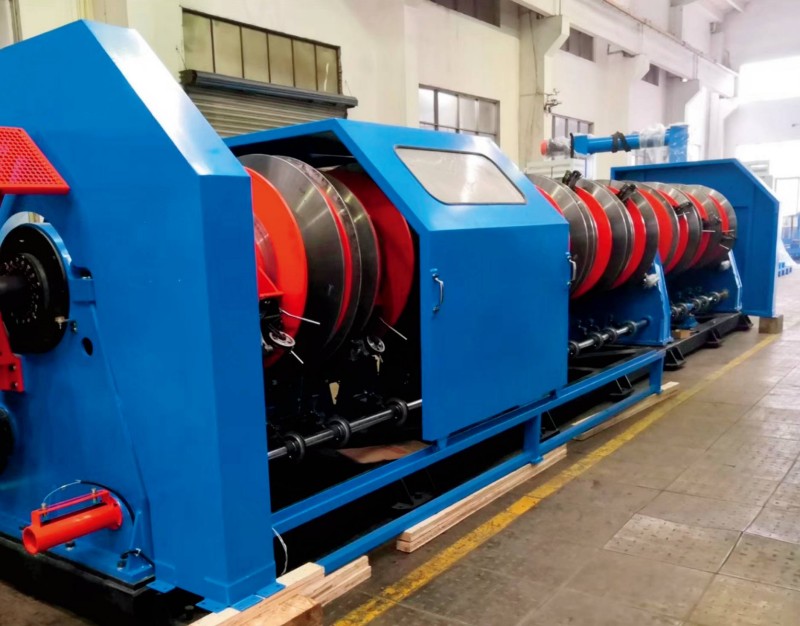

The concentric stranding machine is designed specifically for no-back-twist stranding and pressing of circular and sector-shaped copper, Aluminium and ACSR conductors.
The components of this line have good frame structure rigidity, contributing to high running speed, fast and convenient loading,no turnover spool and etc.;
There is one wire per bobbin,plus simple and stable tension control, and the maximum operating line speed reaches 3 times that of the frame rigid stranding line;
There is a automatic wire-break detection function,the machine will stop immediately when the wire breaks, PLC control is adopted, providing stable operation, reliable performance and high degree of automation.
|
Single wire diameter |
Copper Φ1.7～Φ4.5mm |
|
Aluminium Φ1.8～Φ5.0mm |
|
|
Aluminium Alloy Φ1.7～Φ4.5mm |
|
|
Max. finished wire diameter |
Φ45mm |
|
Stranding pitch |
40~350 (stepless adjust)mm |
|
Max rotating speed |
500 rpm |
|
Max line speed |
120m/min |
|
Max rewinding speed |
100~200m/min |
|
Size of bobbin in cage |
1100×500×200 mm |
|
Rewinding Pay-off |
Φ600×Φ1060×1730 mm |
