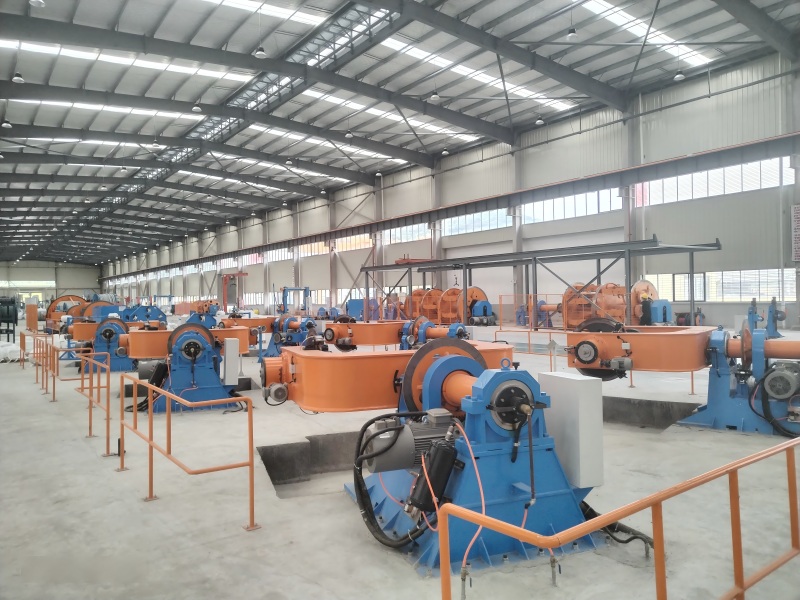

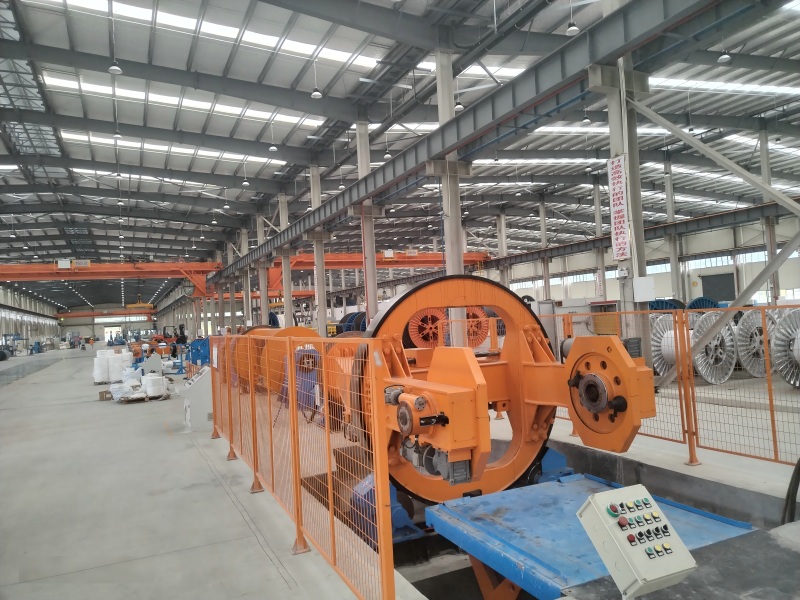

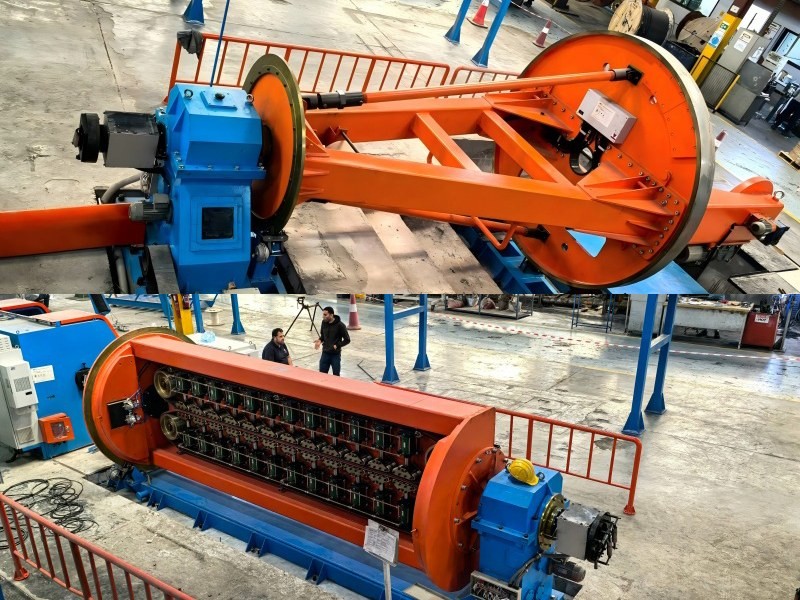

Drum Twister Production Line

Engineered for the precision laying-up,screening,and armoring of large-section power cables and Milliken conductors

Our Drum Twister series(PN1600 to PN3500) offers a versatile,heavy-duty solution for the modern cable factory.Featuring advanced PLC synchronization,constant- tension control,and a robust rotating take-up design,this system ensures superior electrical integrity and mechanical stability for multi-core cables up to HV and EHV grades. With its high-torque capacity and flexible configuration for round or sector conductors,it is the definitive choice for high- efficiency,large-scale cable production.

Inquiry Now

Features

Features a programmable controller and touch screen for real-time operation monitoring. The touch screen allows for setting, modifying, and displaying lay lengths, as well as setting left or right lay direction, and making fine adjustments.

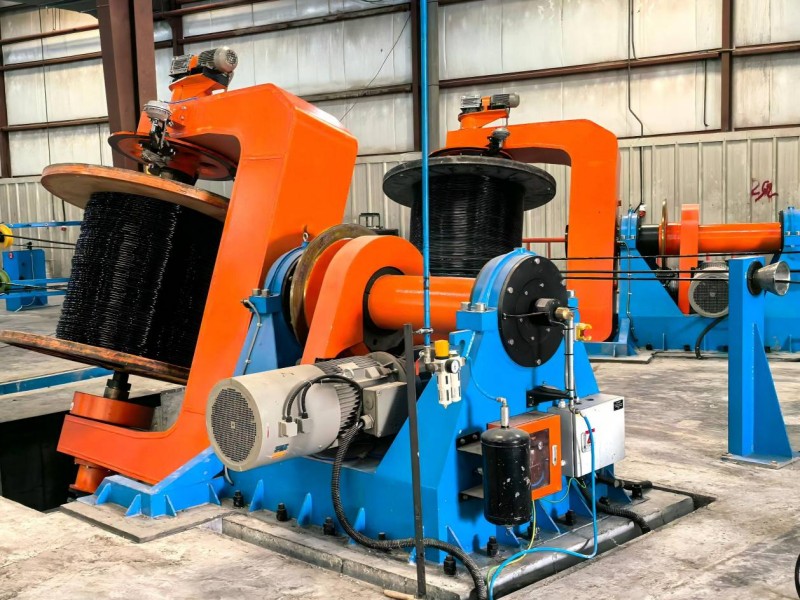

The rotating pay-off stand can switch between multiple functions, including independent stopping, full machine synchronization, and individual speed control via a phase detector, catering to different cable production processes and ensuring high-precision stranding for shaped cables.
Each unit is driven by an independent motor, making installation, operation, and maintenance simple and convenient. Motor feedback through encoders ensures high-precision control.
Includes a centralized steel wire pay-off stand positioned on both sides of the main unit, reducing the overall production line length and minimizing factory investment costs.
The take-up and pay-off stands can handle different reel widths within a specified range without the need for modifications.
All lifting mechanisms use a hydraulic lift platform, providing ease of use and efficient operation.

Specifications

Model	DMT1600	DMT2000	DMT2250	DMT2500	DMT3150	DMT3500	DMT3800	DMT4000	DMT4200
Speed	80 RPM	65 RPM	65RPM	55RPM	45 RPM	35 RPM	35 RPM	35 RPM	35 RPM
Maximum linear speed	60m/min	60m/min	50m/min	50m/min	50m/min	50m/min	50m/min	50m/min	50m/min
