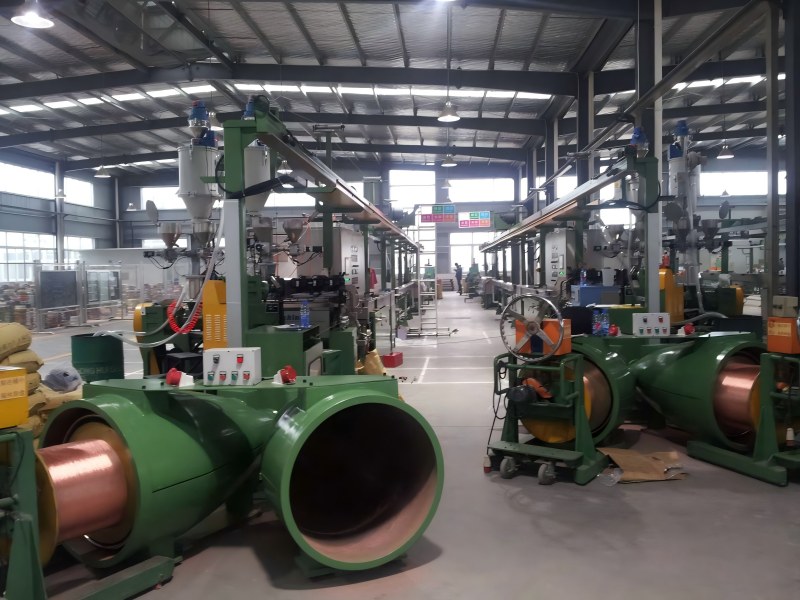

Automotive wire insulation production line
The automotive wire extrusion line designed for high speed insulation for automotive wires. Applicable materials include PVC, PE, XLPE, PU and etc.
| Model | Φ65 + Φ35 | Φ70 + Φ40 | Φ80 + Φ40 |
| Screw diameter | Φ65 mm | Φ70 mm | Φ80 mm |
| Ratio | 27:1 | 27:1 | 26:1 |
| Screw speed | 110rpm | 110rpm | 100rpm |
| Extruder Power | 22kW | 37kW | 55kW |
| Extrusion amount | 170 kg/hr | 220 kg/hr | 300 kg/hr |
| Finished wire outer diameter | Φ1-7mm | Φ1-7mm | Φ1-7mm |
| Control mode | Industrial computer+PLC | ||
| Max line speed | 700 m/min | 800 m/min | 1000 m/min |

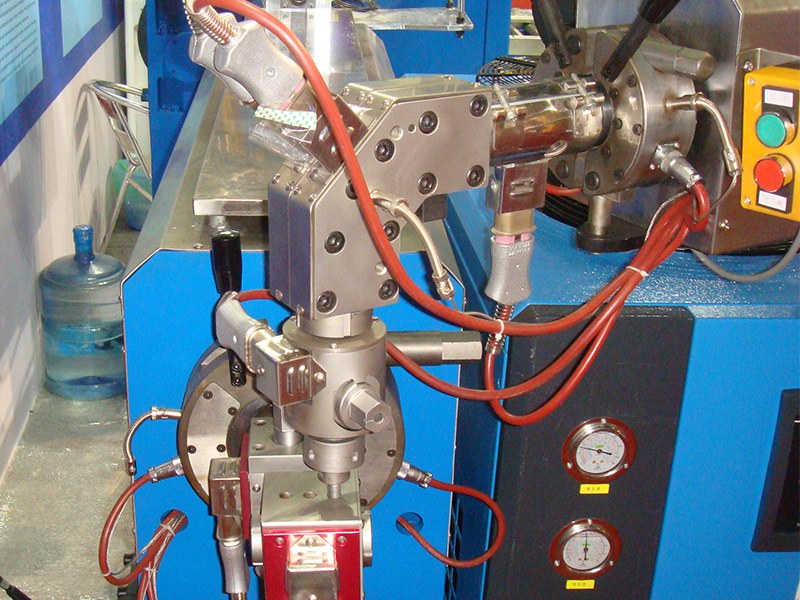

| Extrusion Head | U7 Free nose | U7 Free nose | U8 Free nose |
| Pay-off Type | Flyer pay-off | Flyer pay-off | Flyer pay-off |
| Cooling Type | Enclosed Spray | Enclosed Spray | Enclosed Spray |
| Capstan Type | Double Wheel sealed | ||
| Accumulator Type | Precision horizontal/18m | Precision horizontal/20m | |
| Take-up Type | Automatic cooling/packaging machine | NPS Take-up | |
| Wire diameter control precision | ±0.02mm | ||
