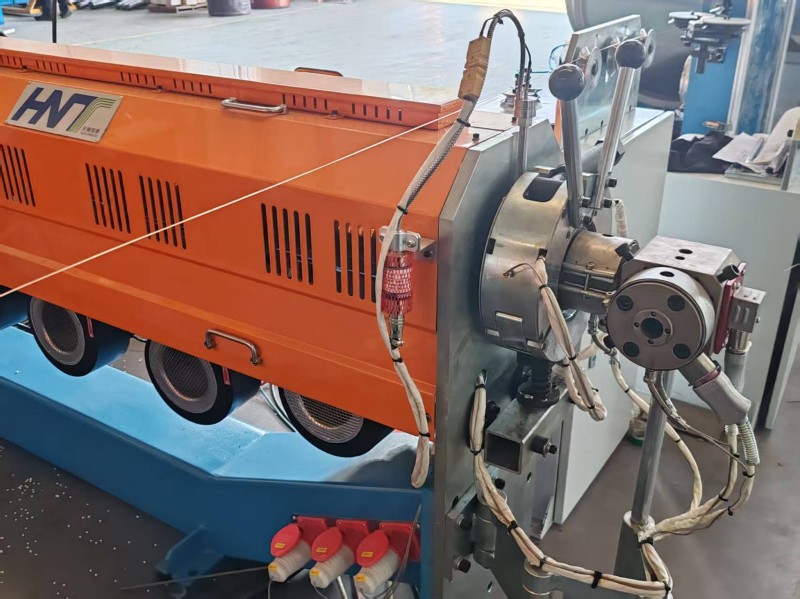

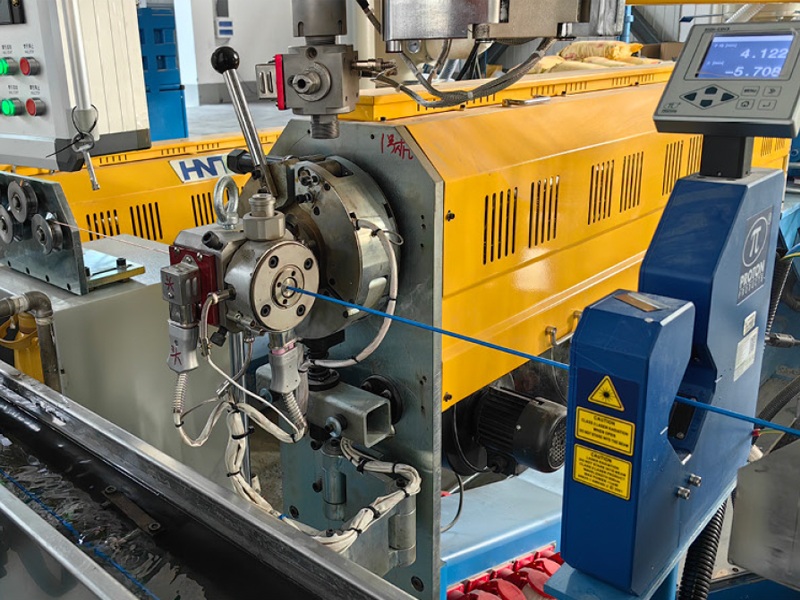

EX High Speed Wire Extrusion Production Line

Cable extruder line for manufacturing building wires and cables

Introducing our high-speed wire extrusion line specifically designed for the manufacturing of building wires. Our cable extrusion machinery allows you to select specific screws and barrels to match various extrusion materials, including PVC, PE, LSNH, Teflon, and Nylon.

Inquiry Now

Features

The extrusion head of EX series can be selected from center adjusted or no-aim-hole type, color mode can be split.
Cross head clampers of EX series are double-tooth rod chain driven,and other fixed parts has the function of auto-centering.
Operation plate of main control box is mounted with human-computer interface and also traditional button switch to ensure operational simplicity.
Electric circuit control is from Mistubishi programmable controller(PLC). Transducer is from Mistubishi FR- A740 series.
Temp-control is from Japanese RKC series temp-controller &solidity repay(SSR). Hopper dryer&Auto-suction device is from TAIWAN Brand.

Specifications

Model	EX-40G	E×-50G	EX-60G	EX-70G	EX-80G	EX-90G	EX-100G	EX-120G
Extrusion amount(PVC)	24 kg/hr	60 kg/hr	100 kg/hr	160 kg/hr	220kg/hr	310kg/hr	400kg/hr	550 kg/hr
Extrusion amount (LDPE)	14 kg/hr	35 kg/hr	60 kg/hr	130kg/hr	180kg/hr	240 kg/hr
Extrusion amount(LSNH)			22 kg/hr	36 kg/hr	48 kg/hr	65 kg/hr	90 kg/hr
Applicable conductor shape	Circular,Solid
Applicable material	PVC,PE,LSNH,Teflon,Nylon and etc.
Wire diameter control precision	±0.02 mm
