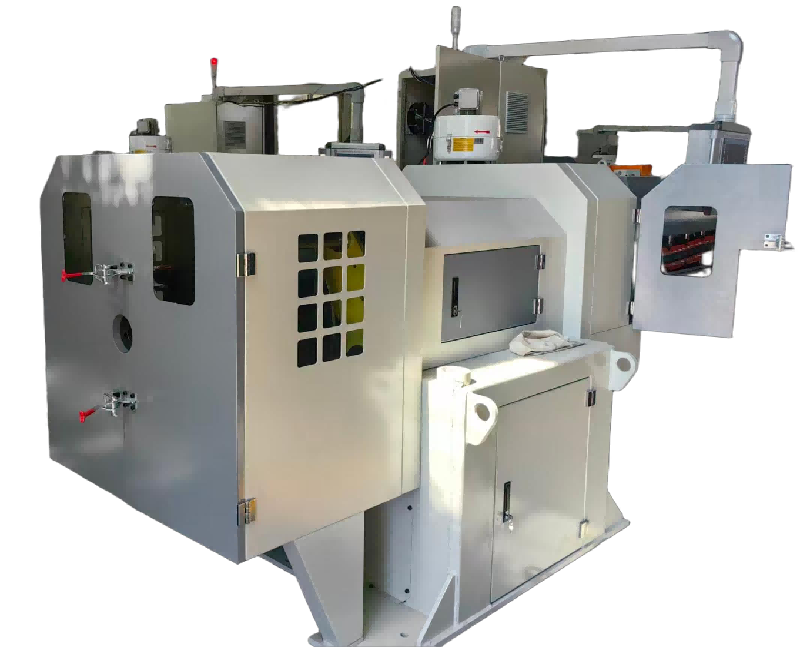

Interlock Armoring Machine

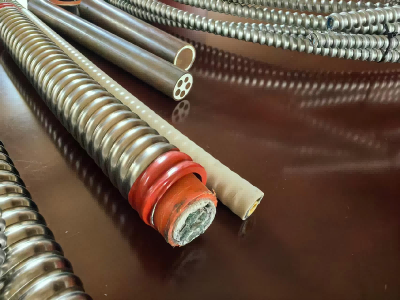

This equipment is primarily used for continuous interlocking armoring of round cables; the armoring material can be 5-series aluminum alloy tape, copper tape, or stainless steel tape.

Inquiry Now

Features

The main unit is driven by two motors and one French Ridex differential; the main unit rotation is driven by a variable frequency motor; and the tape feeding is driven by a servo motor. It is particularly suitable for the armoring production of small-diameter MC cables.
It overcomes the shortcomings of traditional continuously variable transmission (CVT) structures, such as low tape feeding accuracy, inability to produce small-diameter armored cables, easy tape breakage, low efficiency, and cumbersome specification changes.

Specifications

Model	Φ50	Φ100
Inlet cable size	5-45mm	10-95mm
Strip material	Aluminum Alloy, Steel, Copper	Aluminum Alloy, Steel, Copper
Strip width	9.5mm,12.7mm	9.5mm,12.7mm,19mm
Strip thickness	0.5-1 mm	0.5-1 mm
Maximum speed	15m/min	13.6m/min
Drive Motor	22kw	22kw
Rotating speed	800rpm	800rpm
Pitch	6.3,8.5 mm	6.3,8.5,12.7mm
